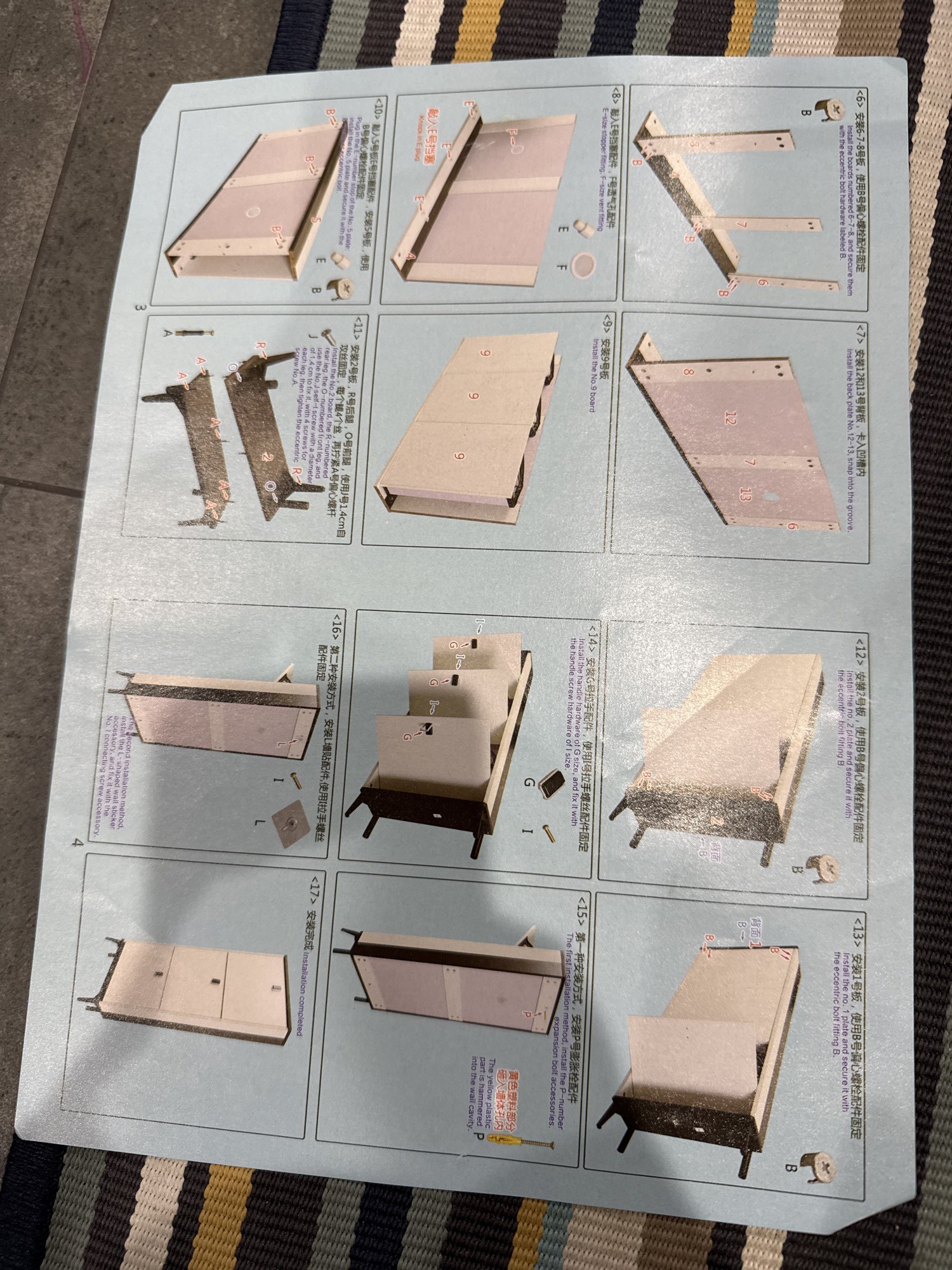

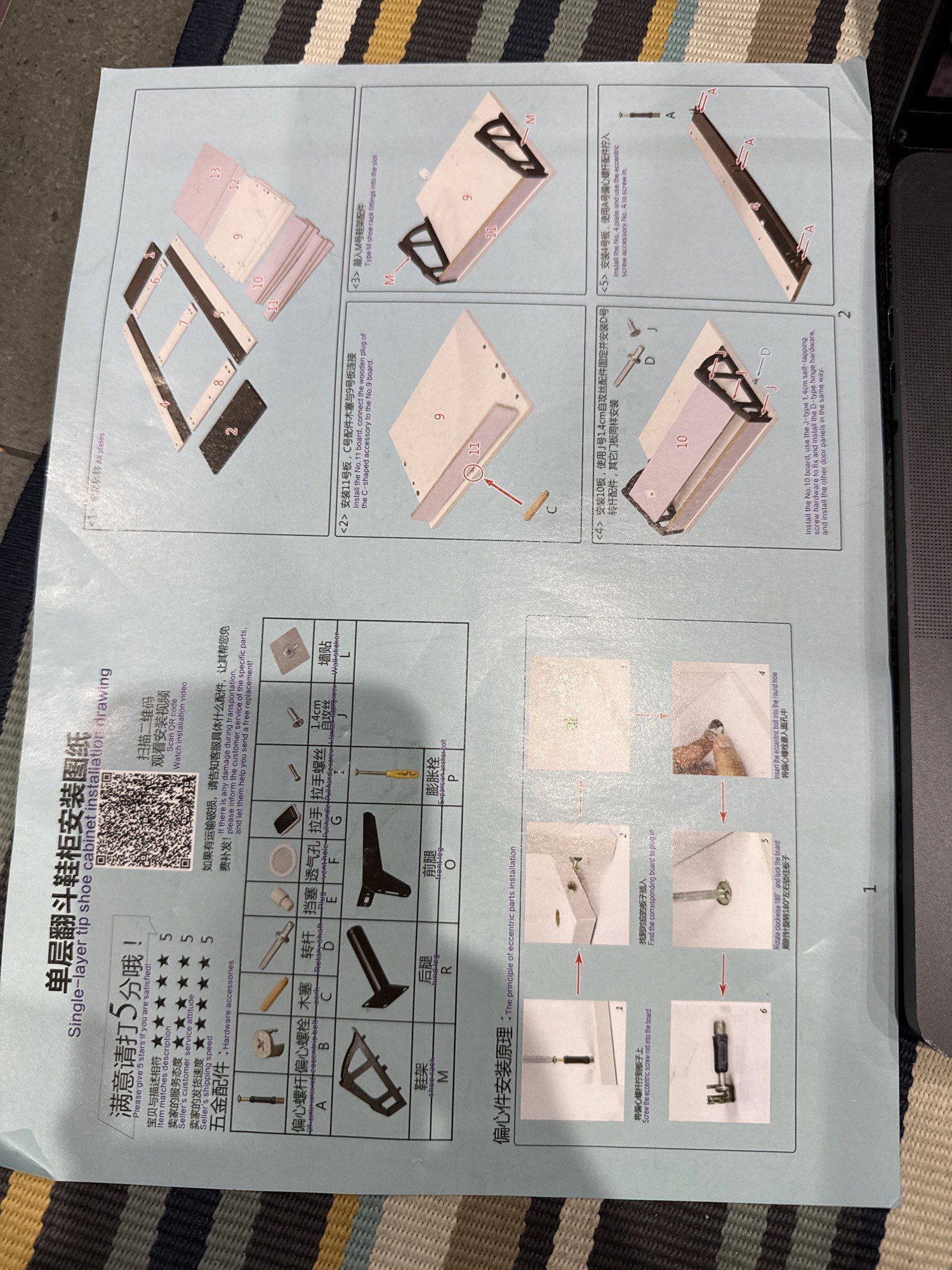

Manual Both pages
Overview & rules
Single-layer tip-out shoe cabinet. Three compartments. Cam-lock carcass, black M frames on the No.9 floors, doors that tip forward.
What you need
- Soft surface — carpet or a blanket on the floor
- Phillips screwdriver (hand, not a drill)
- The paper manual next to this guide
How to do it
- Work on a soft surface so the white boards do not scratch.
- Never force a joint. If it will not seat, stop and check which face is up and whether the holes line up.
- Cam locks (B) only turn about 180°. Stop when the joint pulls tight. One more half-turn can crack the board.
- Put every A cam bolt into its panel before you start locking pieces together.
- Skip F (mesh vents) if they will not press in. Everything else matters more.
